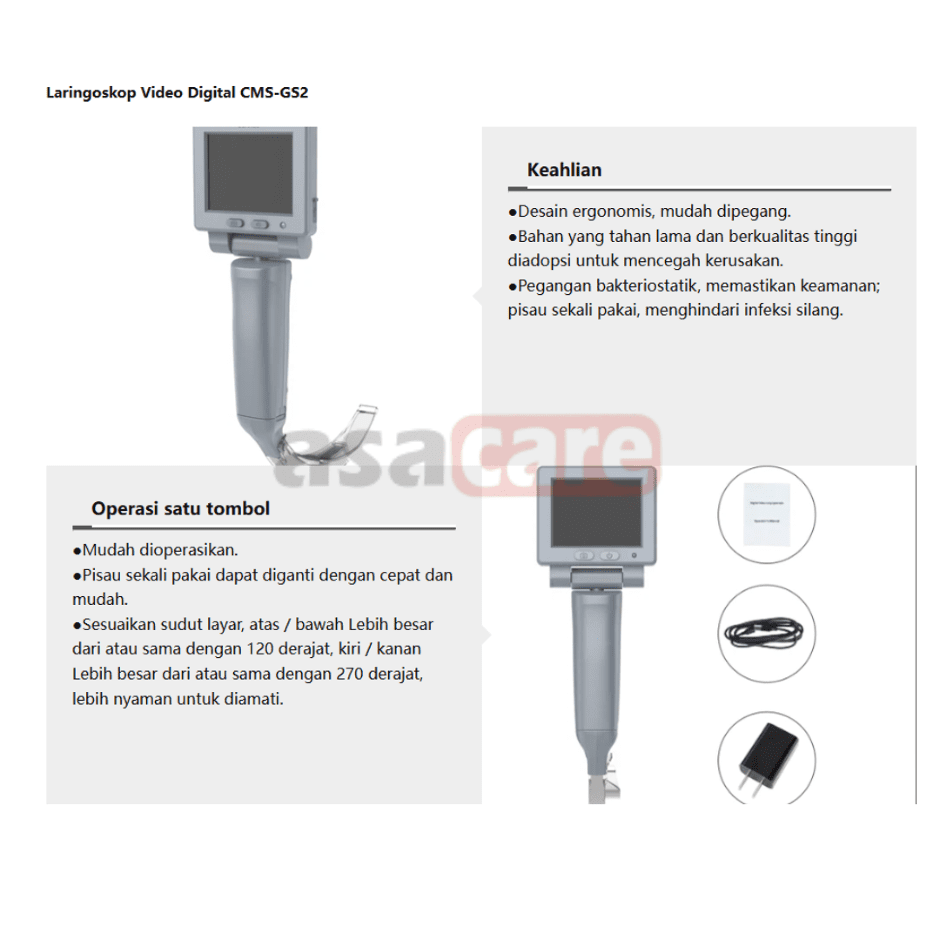

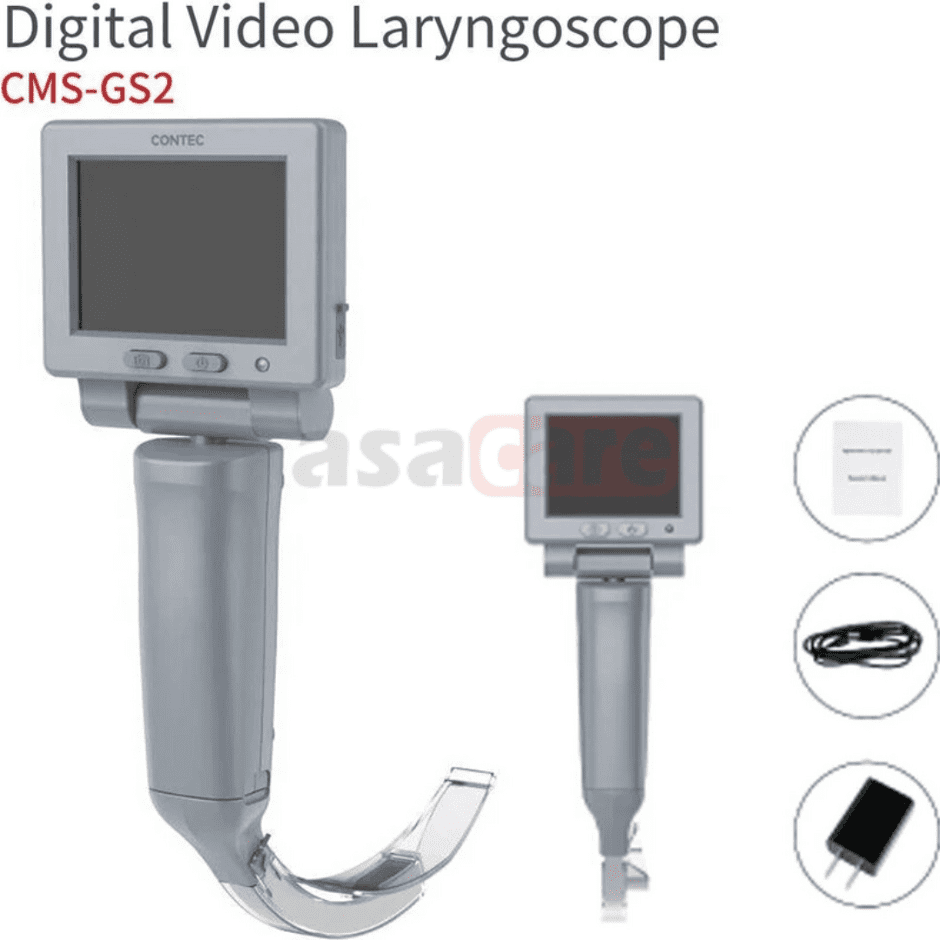

MORE ABOUT THE CONTEC LARYNGOSCOPE VIDEO CMS-GS2

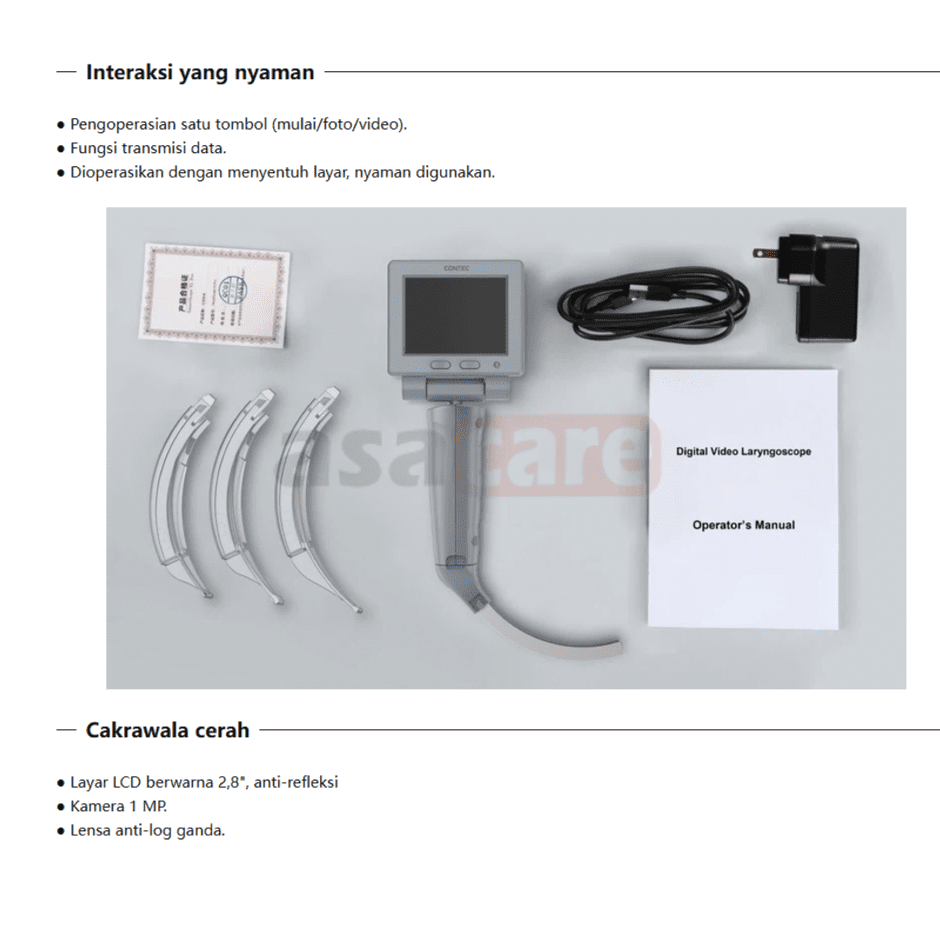

CMS-GS2 is an innovative visual intubation device that provides a clear and direct view of the pharyngeal structure on the screen. It minimizes trauma during tracheal intubation and reduces the dificulty of the procedure. This device offers a new operational mode for clinical anesthesia in establishing airways. Comprised of a main unit, laryngoscope blade, power adapter, and USB transmission cable, it is designed for clinical use in exposing the laryngeal structure in adults/children and guiding medical personnel in accurate airway intubation for anesthesia or emergency care. It can also be utilized in oral examinations and treatments.
Feature
●Craftsmanship: Ergonomic design, durable materials, and a bacteriostatic handle for safety. Features a disposable blade to prevent cross-infection.
●Operation & Functionality: User-friendly with one-button operation. The adjustable screen offers extensive rotation for optimal viewing.
-Photo: Captures images for record-keeping.
-Video: -Records videos.
-File Transfer: Exports captured photos and videos.
-Time Synchronization: Allows synchronization with external devices.
●Visual Clarity: Equipped with a 2.8" color LCD, 1 MP camera, and dual anti-fog feature for clear imaging.
●Versatility & Efficiency: Suitable for both children and adults, it offers disposable blades in different sizes. The device is compact,lightweight, and cost- efective, enhancing the eficiency of medical personnel.
Technical Specifications
Display
Monitor: LCD
Resolution Ratio: 640x480RGB
Aspect Ratio: 4:3
Video refresh Rata: 30FPS
Rotation angle:
Up-down ≥120°and left-right≥270°
Data output:
Easy to create and store files in JPEG or MP4 format.
Connect to the computer through type-c.
Photo and video: 1280*720P
Camera and image:
Resolution Ratio 1.0M Pixels
Field Angle: 260°
lluminance ≥2500LUX
Working distance: 20mm-100mm
Color temperature ≥5000K
Color reduction grade ≥6
Power and Battery：
Type Rechargeable Lithium Battery
Working time of rechargeable battery is greater than 3 hours
Battery life Cycle: More Than 500 times
AC100-240V, 50/60Hz, 50VA
Charging times: less than 1hrs
Working Condition Temperature -10°~ 40 °C
Size and weight：
Product Size: 232x80.30x115.93mm; Product Weight: 0.165kg.
Carton size: 308x190x115mm; Weight: 1.93kg.
